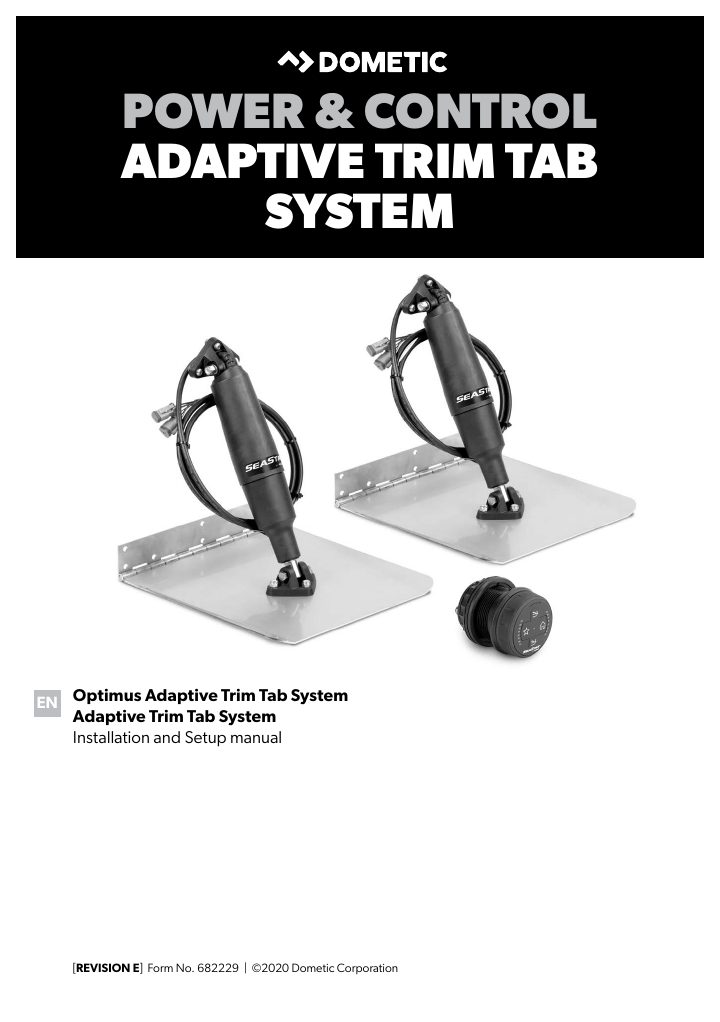

Dometic Optimus Adaptive Trim Tab System

This manual assumes you are familiar with the Adaptive Trim Tab System components and the information presented in the Operating Manual. All manuals included with this system must be delivered to the boat owner when installation is complete. Owner: store your manuals on the boat or in a safe place for future reference.

1. 1 Explanation of symbolsSide 2
2. 2 General safety instructionsSide 2
3. 3 Tab and actuator installationSide 3
4. 4 Controller installationSide 12
5. 5 System wiringSide 14
6. 6 SetupSide 33
7. 7 Testing and commissioningSide 42
8. 8 Installation templateSide 47
